Project Description

About this Project

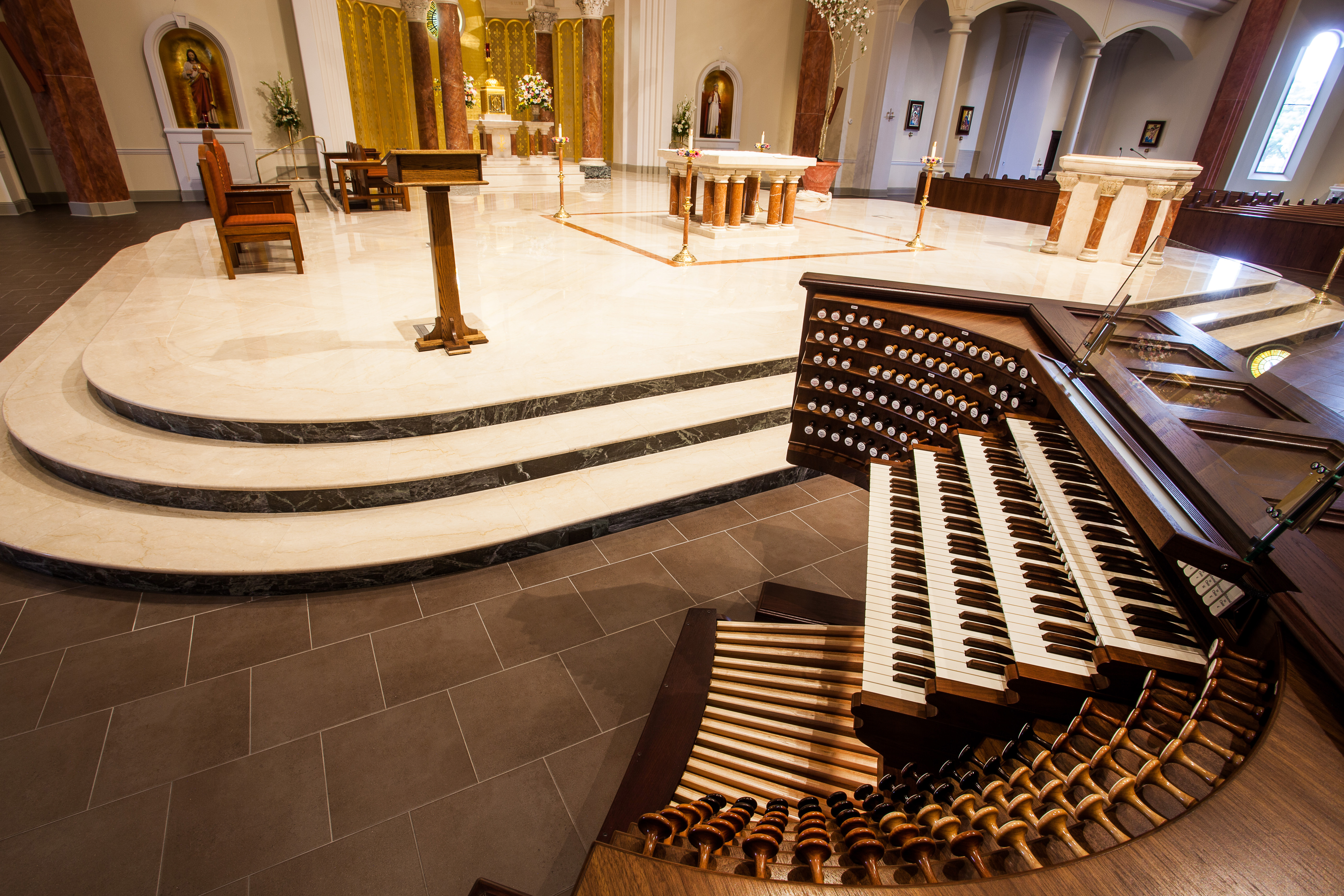

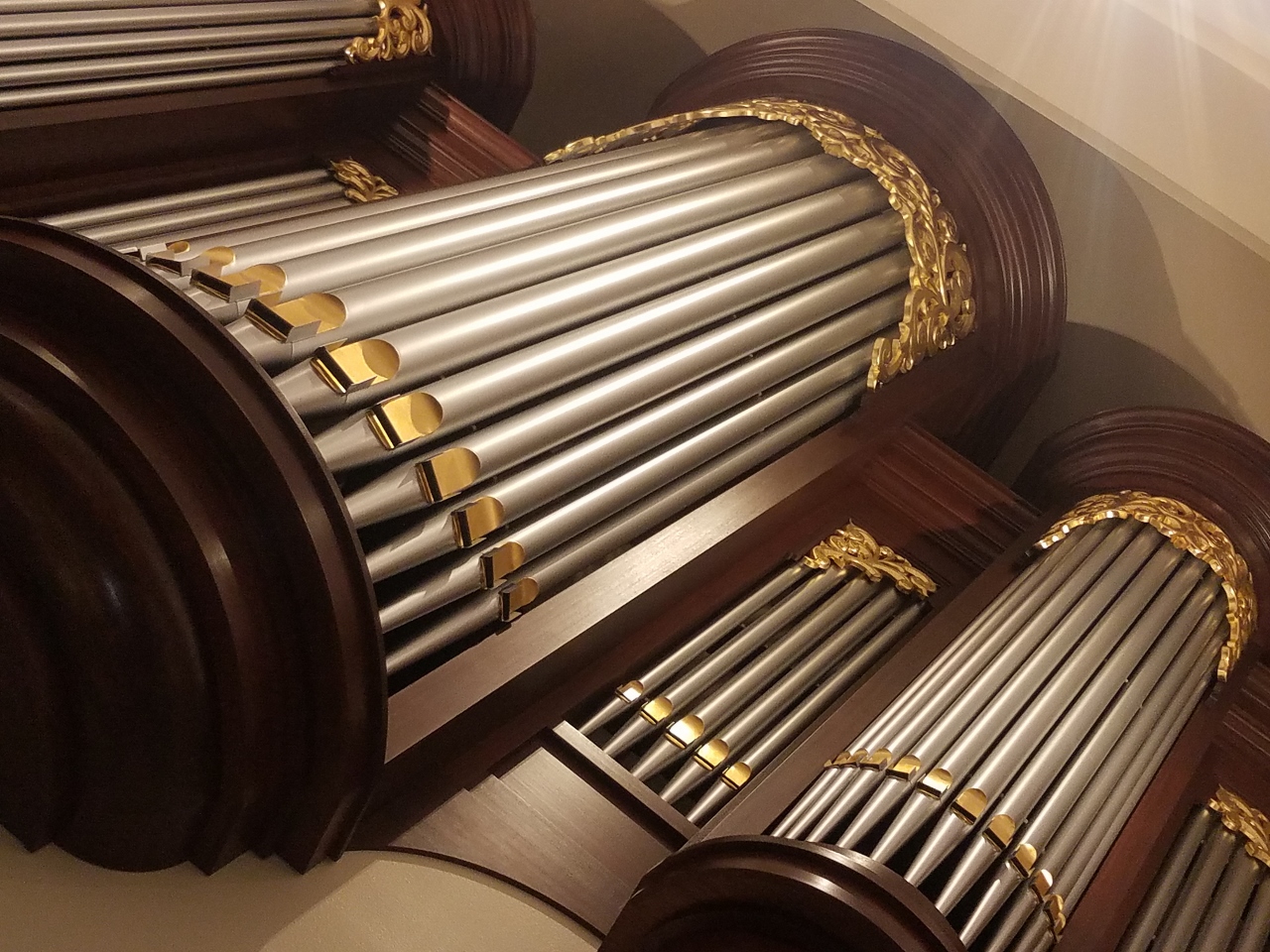

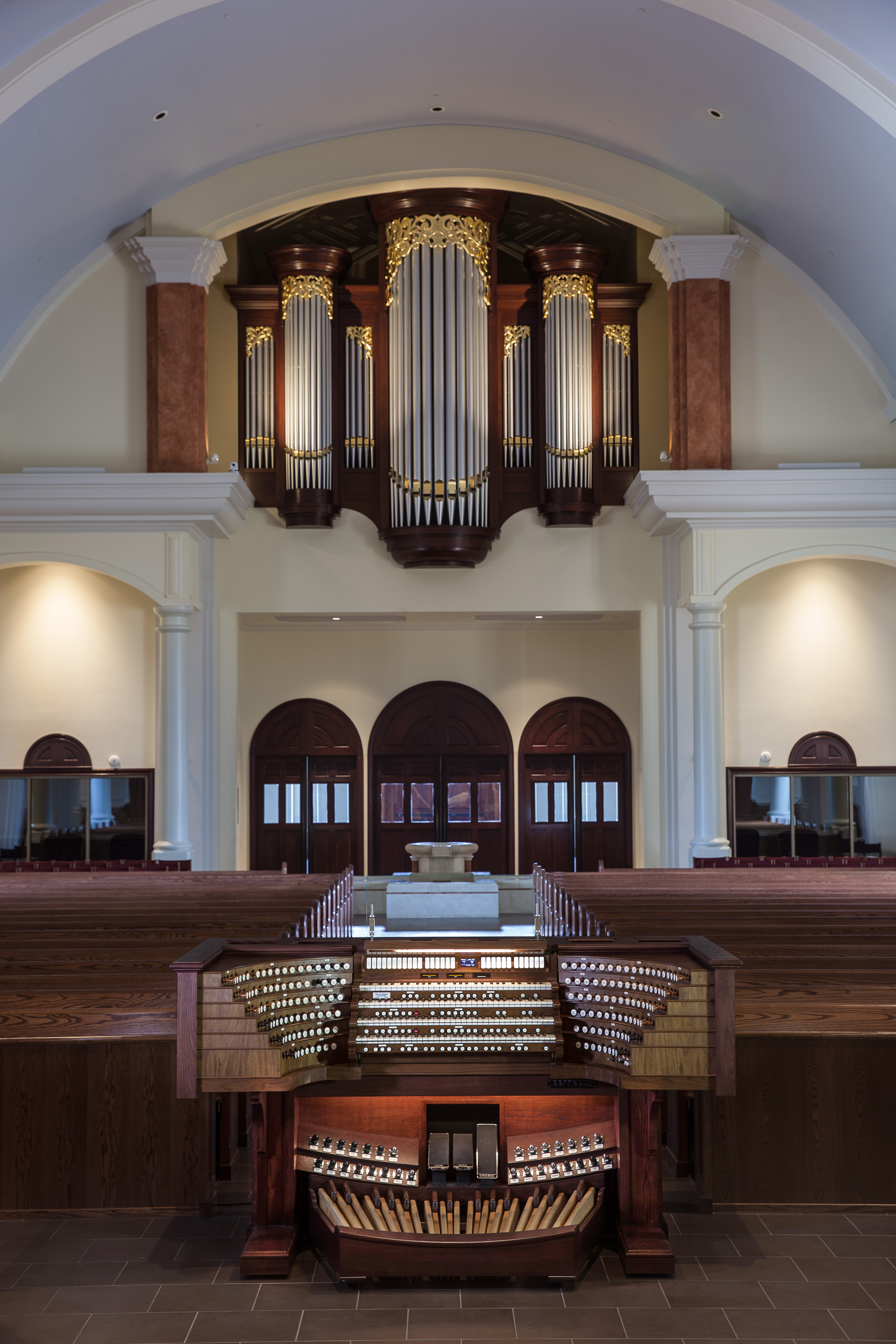

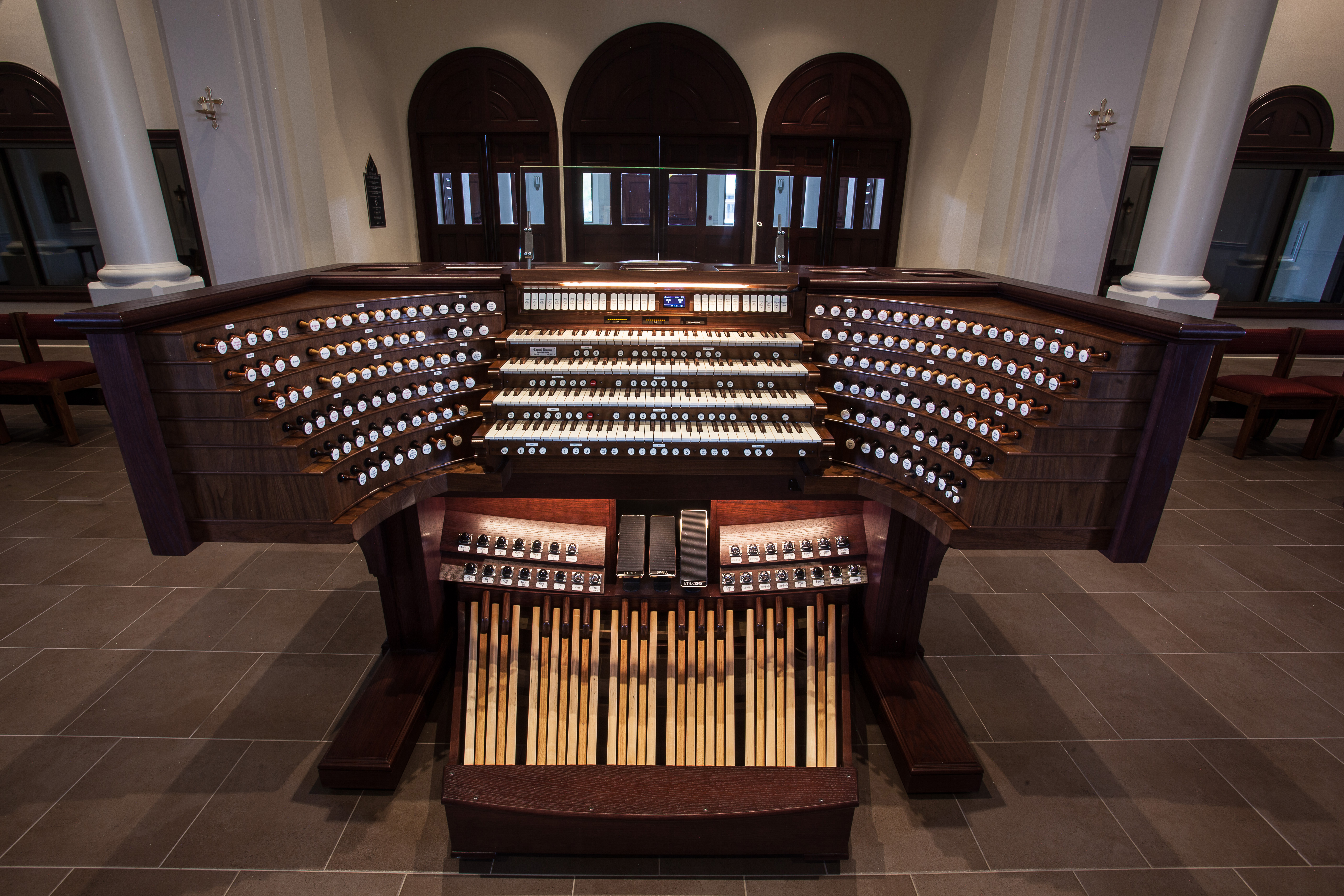

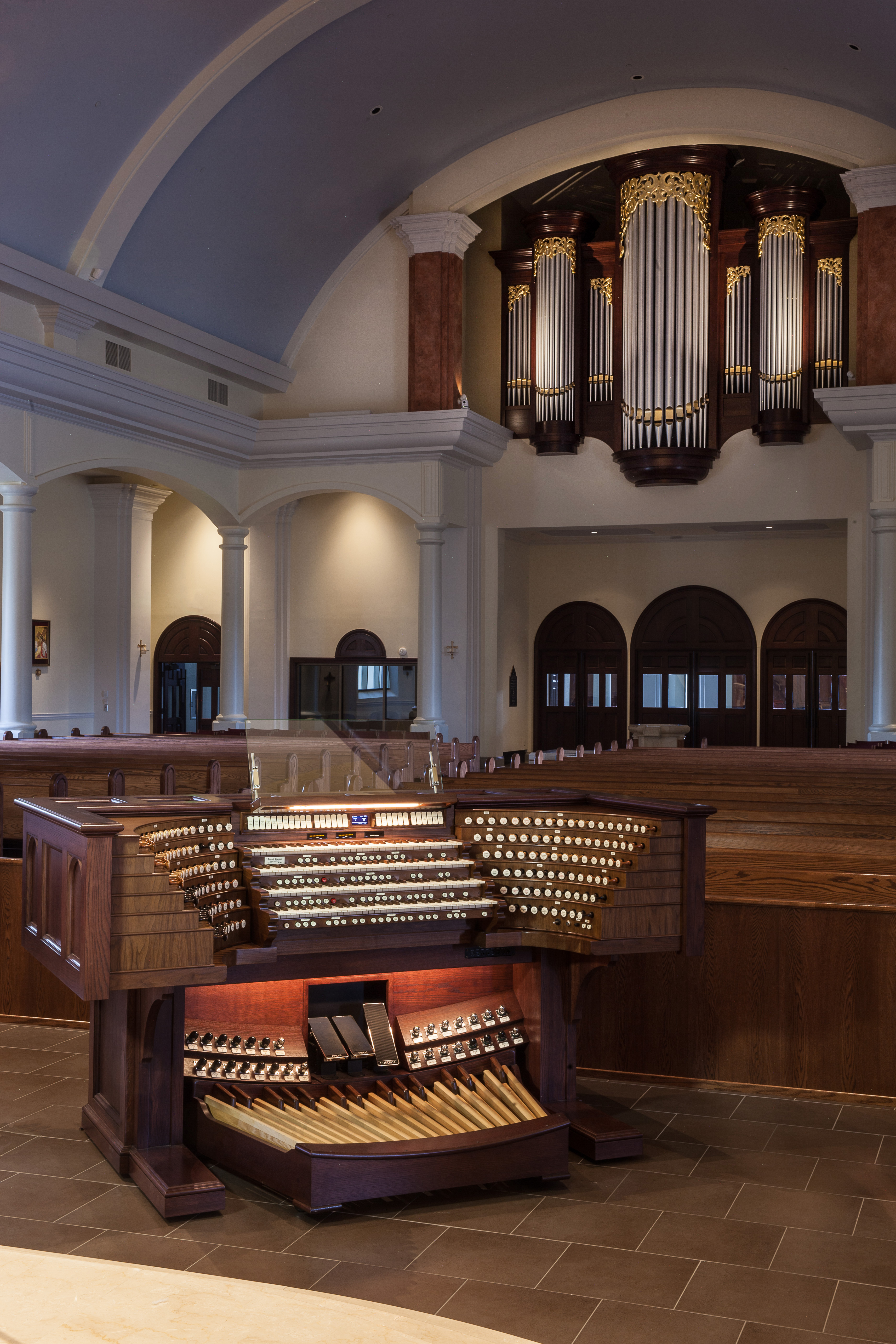

This project consisted of an all-new, four-manual, french terrace style console for St. Pious X Catholic Church in Lafayette, LA. The organ is currently all-digital, with plans to use the newly constructed chamber behind the Façade to house about 30 ranks of pipes.  All of the Façade pipes are speaking, and ready to be winded!

Stop List

GREAT 1. Violone 16′
Unenclosed 2. 1st Diapason 8′
Manual II 3. 2nd Diapason 8′
4. Harmonic Flute 8′
5. Doppel Flute 8′
6. Gamba 8′
7. Octave 4′
8. Waldflute 4′
9. Twelfth 2 2/3′
10. Fifteenth 2′
11. Mixture V 1 1/3′
12. Harmonics IV 1 3/5′
13. Posaune 16′
14. Tromba Major 8′
15. French Horn 8′
16. Clarinet (Ch) 8′
17. Tuba Major (Ch) 8′
18. Tremulant
19. Trumpet en Chamade 8′





SWELL 1. Bourdon 16′
Expressive 2. Diapason 8′
Manual III 3. Clarabella 8′
4. Rohrflute 8′
5. Salicional 8′
6. Voix Celeste 8′
7. Flute Celeste II 8′
8. Principal 4′
9. Flauto Traverso 4′
10. Harmonic Piccolo 2′
11. Flute Twelfth 2 2/3′
12. Chorus Mixture V 2′
13. Flute Seventeenth 1 3/5′
14. Waldhorn 16′
15. Cornopean 8′
16. Oboe 8′
17. Vox Humana 8′
18. Clarion 4′
19. Tremulant
20. Swell Sub 16′
21. Swell Unison Off
22. Swell Super 4′





CHOIR 1. Dulciana 16′
Expressive 2. Violin Diapason 8′
Manual I 3. Concert Flute 8′
4. Viole Sourdine 8′
5. Viole Sourdine Celeste 8′
6. Dulciana 8′
7. Unda Maris 8′
8. Flute D’ Amour 4′
9. Violina 4′
10. Viole Sourdines II 4′
11. Unda Maris II 4′
12. Viol Fifteenth 2′
13. Corno di Bassetto 16′
14. Flugel Horn 8′
15. Orchestral Oboe 8′
16. Clarinet 8′
17. Tuba Major 8′
18. Trumpet en Chamade (Gt) 8′
19. Tremulant
20. Harp
21. Celesta
22. Choir Sub 16′
23. Choir Unison Off
24. Choir Super 4′





Nave Great 1. English Diapason 8′
Expressive on Choir 2. Hohlflute 8′
At Home on Great 3. Erzahler 8′
4. Erzahler Celeste 8′
5. Octave 4′
6. Grave II 2 2/3′
7. Tromba Minor 8′
8. Gt. Sub 16′
9. Unison Off
10. Gt. Super 4′





Nave Swell 1. Stopped Diapason 8′
Expressive on Swell 2. Viole de Gambe 8′
At Home on Swell 3. Viole Celeste 8′
4. Orchestral Flute 4′
5. Oboe 8′
6. Sw. Sub 16′
7. Unison Off
8. Sw. Super 4′





Nave Pedal 1. Contra Gamba (Eth) 32′
Expressive on Choir/ 2. Violone 16′
Ethereal Shoe 3. Viol (Eth) 16′
4. Viol Sharp (Eth) 16′
5. Bourdon 16′
6. Cello (Eth) 8′
7. Cello Sharp (Eth) 8′
8. Gedeckt 8′
9. Bassoon (Sw) 16′





Ethereal 1. Viol 16′
Expressive on Crescendo/ 2. Flute Angelique 8′
Ethereal Shoe 3. Cor de Nuit 8′
4. Violoncello 16′
5. Violoncello Flat 16′
6. Violoncello Sharp 8′
7. Muted Violin 8′
8. Muted Violin Flat 8′
9. Muted Violin Sharp 16′
10. Fernflote 4′
11. Muted Violins III 4′
12. English Horn 8′
13. Heckelphone 8′
14. Corno d’Amore 8′
15. Vox Humana 8′
16. Tremolo
17. Chimes
18. Trumpet en Chamade 8′
19. Ethereal Sub 16′
20. Unison Off
21. Ethereal Super 4′





PEDAL 1. Contra Bourdon 32′
Unenclosed 2. Open Diapason 16′
3. Violone (Gt) 16′
4. Subbass 16′
5. Lieblich Bourdon (Sw) 16′
6. Gemshorn (Ch) 16′
7. Octave 8′
8. Bass Flute 8′
9. Violone (Gt) 8′
10. Muted Viol (Ch) 8′
11. Choralbass 4′
12. Cantus Flute (Gt) 4′
13. Grave Mixture II 2 2/3′
14. Bombarde 32′
15. Trombone 16′
16. Posaune (Gt) 16′
17. Waldhorn (Sw) 16′
18. Tromba 8′
19. Clarion 4′
20. English Horn (Sw) 4′





COUPLERS 1. Great to Pedal 8′
2. Great to Pedal 4′
3. Swell to Pedal 8′
4. Swell to Pedal 4′
5. Choir to Pedal 8′
6. Choir to Pedal 4′
7. Nave Gt. to Pedal 8′
8. Nave Sw. to Pedal 8′
9. Ethereal to Pedal 8′
10. Ethereal to Pedal 4′
Status Screen
11. Swell to Great 16′
12. Swell to Great 8′
13. Swell to Great 4′
14. Choir to Great 16′
15. Choir to Great 8′
16. Choir to Great 4′
17. Ethereal to Great 16′
18. Ethereal to Great 8′
19. Ethereal to Great 4′
20. Swell to Choir 16′
21. Swell to Choir 8′
22. Swell to Choir 4′
23. Ethereal to Choir 16′
24. Ethereal to Choir 8′
25. Ethereal to Choir 4′
26. Nave Sw. to Gt. 16′
27. Nave Sw. to Gt. 8′
28. Nave Sw. to Gt. 4′
29. Great/Choir exchange
30. All Swells to Swell
