Project Description

About this Project

This organ features:

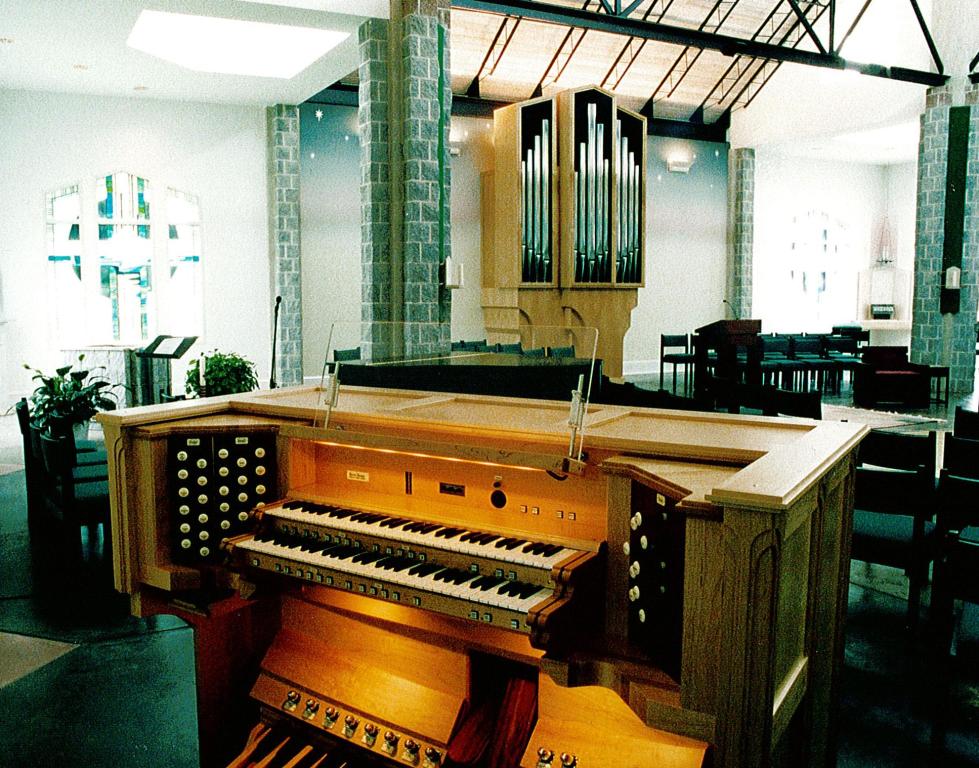

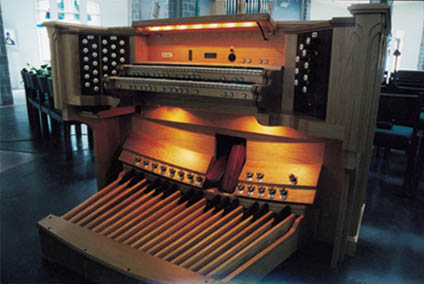

  • Custom designed and built console
  • Cabinet finished to match architectural woodwork of church
  • Drawknobs for stop controls – Harrris
  • Tilt tabs for coupler contols – Harris
  • 2 manual keyboards by P&S
  • Faux Ivory naturals w/ Ebony sharps
  • 61-note compass
  • 32 note pedalboard
  • Maple naturals with rosewood sharps
  • Expression shoes – Rosewood
  • Balanced Swell Expression Shoe
  • Balanced Crescendo Pedal
  • Indicator lights for all shoes
  • New micro-processor switching, console control, combination action
  • Adjustable lighted music desk
  • Pedalboard lighting
  • Switch for main organ/blower with indicator light
  • Transposer +6/-6
  • Adjustable organist’s bench designed and finished to match console
  • Complete MIDI Implementation:
    • 6 Programmable MIDI stops on lighted thumb pistons
    • MIDI In/Out/Thru ports
    • Sequencer In/Out ports
    • Auxiliary stereo audio input ports – 1/4″ jacks

Stop List

GREAT
Manual I
Unenclosed		 Principal
Bourdon
Dolcan Celeste
Octave
Koppelflute
Blockflute
Mixture III-IV
Trumpet
Swell to Great		 8′
8′
8′
4′
4′
2′ es
1 1/3′
8′
8′
SWELL
Manual II
Expressive		 Chimney Flute
Viola da Gamba
Voix Celeste
Spitz Principal
Harmonic Flute
Nazard
Principal
Tierce
Nasat
Hautbois
Tremulant
Chimes
Harp
Zimbelstern		 8′
8′
8′
4′
4′
2 2/3′
2′
1 3/5′
1 1/3′
8′
PEDAL
Unenclosed		 Contra Violone
Bourdon
Violone
Octave
Gedeckt
Choralbass
Nachthorn
Posaune
Trumpet
Hautbois
Great to Pedal
Swell to Pedal		 32′
16′
16′
8′
8′
4′
4′
16′
8′
4′
8′
8′
REVERSIBLES As Thumb Pistons Only:
Swell to GreatAs Toe Pistons Only:
ZimbelsternAs Thumb Pistons Duplicated by Toe Pistons:
Great to Pedal
Swell to Pedal
Tutti – programmable for each Memory Bank

As lighted thumb pistons (can be set on combination action):
Crescendo II (Orchestral)
Swell to Great Melody Coupler
Pedal to Great Bass Coupler
MIDI on Great
MIDI on Great
MIDI on Swell
MIDI on Swell
MIDI on Pedal
MIDI on Pedal
8′8′
8’A
B
A
B
A
B
